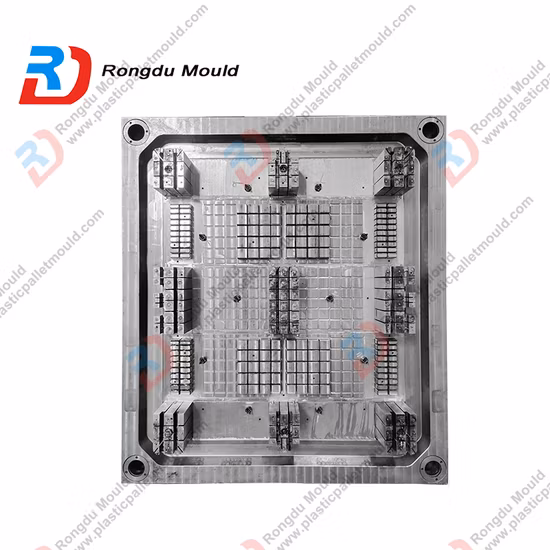

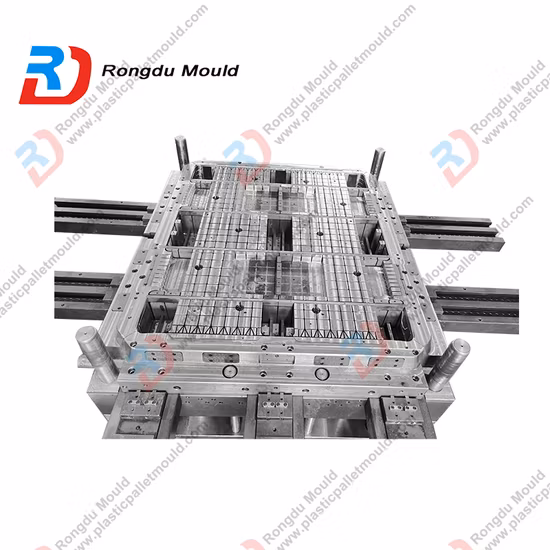

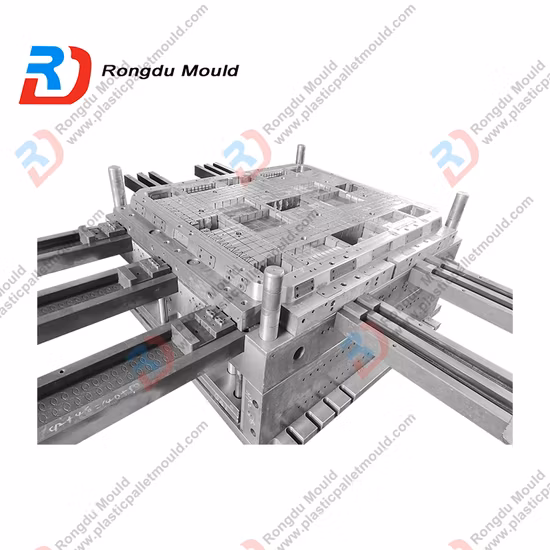

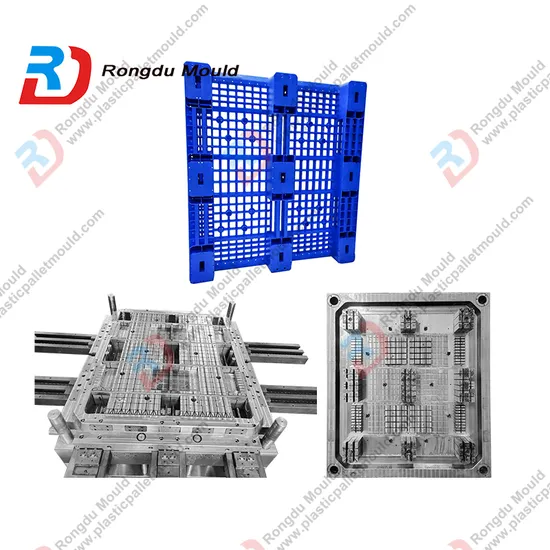

1400X1200X150mm Plastic Logistics Injection Pallet Mold

Overview

Basic Info.

Model NO.	Three Skid Plastic Pallet Mould
Application	Commodity, Logistics Transport Industrial
Runner	Hot Runner
Design Software	UG
Installation	Fixed
Certification	TUV
Standard	DME
Customized	Customized
After-sales Service	with in 24 Hours Online Guidance
Hydraulic Cylinder	Taiwan Brand
Mould Cycle Time	120s
Ejection System	Ejector Pin & Plate
Mould Guarantee	1 Year
Pallet Loading Ability	Well Standard
Mould Life	More Than 500K Shoots
Mould Delivery Time	70 Days
Mould Tooling Precision	5-Axis Tooling Machine
Cooling System	Beryllium-Bronze Insert
Hot Runner System	Yudo, Mold Master, Chinese Brand
Mould Steel for Core	HP20, H718, 2738
Mould Steel for Basement	S50c
Mould Treatment	Nitridation, Quencher, Heat-Treated, Pre-Hardening
Transport Package	Wooden Case
Specification	1400*1200*150mm
Trademark	Rongdu Mould
Origin	China
HS Code	8480719090
Production Capacity	500 Sets Mould Annually

Product Description

1400X1200X150mm Plastic Logistics Injection Pallet Mold

Pallet is a good product for economic development, it makes convenient for transportation. 1400x1200x150mm window type pallet have many advantages, like using hygienic plastic for raw material, which realize the green and scientific manufacturing for plastic pallet. By the way, our skid pallet owns good structure and beautiful shape, it received good reputation on the market and our customer.
Product Name:Skid Plastic Pallet Mould
Product Size: 1400*1200*150mm
Product Weight: 17KG Plastic Material: HDPE,PPDesign Program: NX(UG), Auto CAD, Solid Works
Mould Size: 1800*1650*1100mm
Mould Cavity: Single Cavity Mould Steel for Cor/cav: HP20,H718,2738, S136 Mould Steel for Slider/Insert Block: HP20,H718,2738, S136 Mould Steel for Basement: S50C, HP20Injection System: 22 Tips Hot Runner SystemGate Type: Direct Gate TypeHot Runner System: Chinese Brand, YUDO Brand, Mold Master BrandCooling System: Beryllium-Bronze Insert & Water CoolingEjection System: Ejection Plate & PinMould Surface Treatment: Texture or High Gloss PolishingHydraulic Slider: JUNFAN made in TAIWANMould Spare Part: DME or HASCO StandardMould Tooling Tolerance: ±0.1mm
Mould Cycle Time: 120SMould Life: 1 Million Shoots Mould Guarantee: 1 year Mould Deliver Time: 70 Days

Product Description

Pallet Name	Logistics Three Skid Pallet Mould
Pallet Size	1400*1200*150mm
Pallet Weight	17KG
Cavity Number	1 Cavity
Plastic	HDPE,PP
Design Program	NX(UG), Auto CAD, Solid Works

Mould Description

Mould Size	1800*1650*1060mm
Mould Cavity	Single Cavity
Mould Steel for Cor/cav	Nitrided & Heat-Treated & Hardened Steel HP20,H718,2738
Mould Steel for Slider/Insert Block	Nitrided & Heat-Treated & Hardened Steel HP20,H718,2738
Mould Steel for Basement	Nitrided & Heat-Treated & Hardened Steel S50C, S45C
Mould Raw Material Treatment	Nitridation, Quencher, Heat-Treated, Pre-Hardening

Injection System	30 Tips Hot Runner
Gate Type	Direct Gate
Hot Runner System	YUDO, Mold Master, Chinese Brand
Cooling System	Beryllium-Bronze Insert & Water Cooling
Ejection System	Ejection Plate & Pin
Mould Surface Treatment	Texture or High Gloss Polishing
Hydraulic Slider	JUNFAN made in Taiwan
Mould Spare Part	DME or HASCO Standard
Mould Tooling Tolerance	±0.1mm
Mould Cycle Time	120S
Mould Life	500K shoots
Mould Guarantee	1 year

Mould Delivery Description

Mould for T1	65 days
Mould Deliver Time	70 days
Mould Installation	Fixed
Mould HS CODE	8480719090
Package	Wooden Case, mould would be Fixed inside
Transportation	By Air or By Sea
Payment	T/T, CIF

Company Profile

1. Background
Rongdu Mould is one of the Pioneer for plastic injection mould manufacturer. The Originator of us have making mould since 1985 year and accumulated abundant experiences. So we are specialized for manufacturing all kinds of plastic injection mould, especially for PLASTIC PALLET MOULD, Crate Mould, Plastic Chair Mould, Industrial Waste Bin Mould, Plastic Warehouse Mould etc.
Rongdu could manufacturer more than 600 sets of plastic mould annually, including 500 sets of PALLET MOULD, like Nine Leg Plastic injection Pallet mould, Skid Plastic injection Pallet mould, Window Plastic injection Pallet mould, Double Deck Net Plastic injection Pallet mould etc.
"Making Mould More Valuable " is our final achievement. We focus on the MOULD QUALITY & DELIVERY TIME, providing stable mould within shortly time for each customer. So Rongdu Mould won good reputations from our old regular customer, and become one of leading for PALLET MOULD MANUFACTURER.
2.Advantages
A. Rongdu have Strong Design Team
For every new mould project, we would have a meeting to discuss all detail information, After product design will be confirmed, we would make the mould design and Mold Main Flow Analysis, in order to give customer reasonable suggestions and find best solution.
B. Rongdu have strict Mould Testing Standards
a. We would test every mould raw material, ensure the mould raw material quality.
b. We would checkout the mould Tooling processing, in order to make the each part of the mould could have precising dimension.
c. Our Assemble Mould Worker have more than 10 years working experience, we are familiar with all details.

C. Rongdu have Fast Mould Delivery Ability
Mould prompt be shipment is our most advantage, we take high attention and responsibility for customer demand, shipping each set mould timely to customer country.
3.Service
Rongdu mould not only sale the mould to customer, we pay highly attention Pre- & after- service. We would discuss with customer together, like product structure, analysis demould feasibility, analysis mould main flow. And we would have a meeting before the mould manufacturing, in order to support more valuable suggestions for our customer.

FAQ

-What Products Can You Provide?
Rongdu mainly manufacture:1111 Single-sided Nested Pallet Mold with Nine-leg ; 1210 Single-sided Nested Pallet Mold with Nine-leg ; 1210 Single-sided Grid Pallet Mold with Nine-leg on bottom;1210 Single-sided Flat Pallet Mold with Nine-leg ; 1010 Double-sided Grid Skid type Pallet Mold; 1111 Double-sided Grid Window type Pallet Mold;1111 Double-sided Grid Skid type Pallet Mold; 1210 Grid Skid type Pallet Mold; 1210 Single-sided Grid Pallet Mold;1210 Single-sided Flat bottom Skid type Pallet mold; 1080 Window type Pallet Mold; 1080 Grid Skid type Pallet Mold;1212 Grid Window Pallet Mold; 1311 Grid Skid with ten Steel-Insert Pallet Mold; 1311 Double-sided Grid Pallet Mold;1412 Double-Sided Grid Pallet Mold; 1412 Double Flat Pallet mold; 1513 Double-sided Grid Pallet Mold; 1513 Double-sided Flat Pallet Mold, etc.;5L, 15L Medical Garbage Mold; 30L, 50L, 100L, 120L, 240L, 360L, 600L Industrial Garbage Mold; 40L Two-Color sorting Garbage Mold etc. ; Fruit and Vegetable Crate mold; Bread Bucket mold; Clothing collection Container Mold and other Turnover Box Mold; Large Pallet Box Mold.
-How Long Can I Get The Feedbacks After We Sent The Inquiry?
We will reply you within 24 hours in working day.
-What Application Fields Are Your Products Mainly Involved In?
Plastic pallets are suitable for chemical, petrochemical, food, aquatic products, feed, clothing, making, shoes, electronics, electrical appliances, port, dock, catering, bio-pharmaceutical, mechanical hardware, automobile manufacturing, petrochemical, stereo storage, logistics and transportation, warehouse handling, storage shelves, auto parts, beer and beverage, textile printing and dyeing, printing and packaging, logistics station and other industries.
-Can You Make Customized Products?
Yes, we mainly make customized products. We develop and produce products based on drawings or samples provided by customers.
-What Is The Production Capacity Of Your Company?
We have our own production flow from the procurement of steel preparations to five-axis milling machine, CNC tooling machine, lathe machine, fine carving machine, electric discharging machine, graphiting machine, slow wiring machine, wire cutting machine, etc., and then to mold installation.
-What Is The Payment Method?
We would confirm the transaction method with you, we generally adopt the FOB method. We usually pay 50% of the advance payment first, and then pay the balance before shipping.
